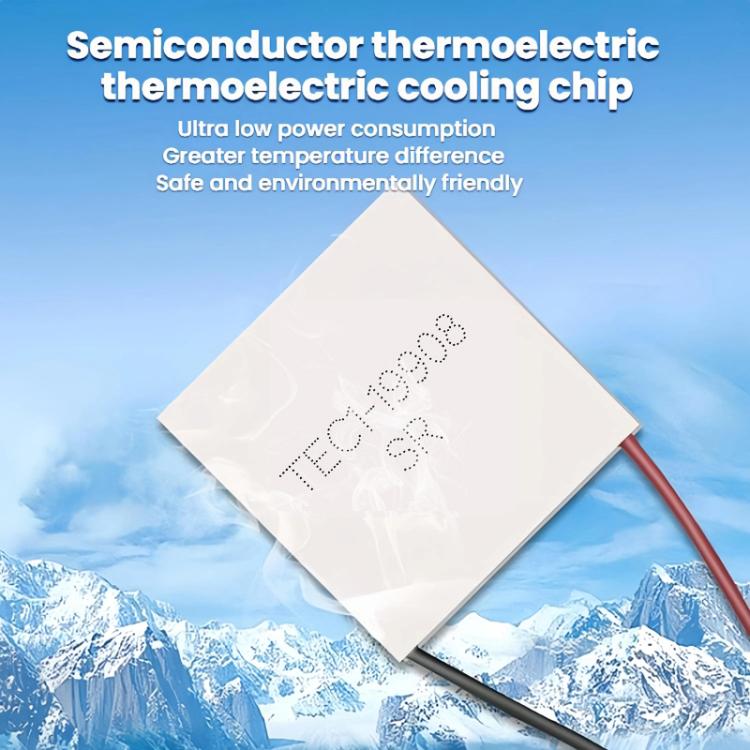

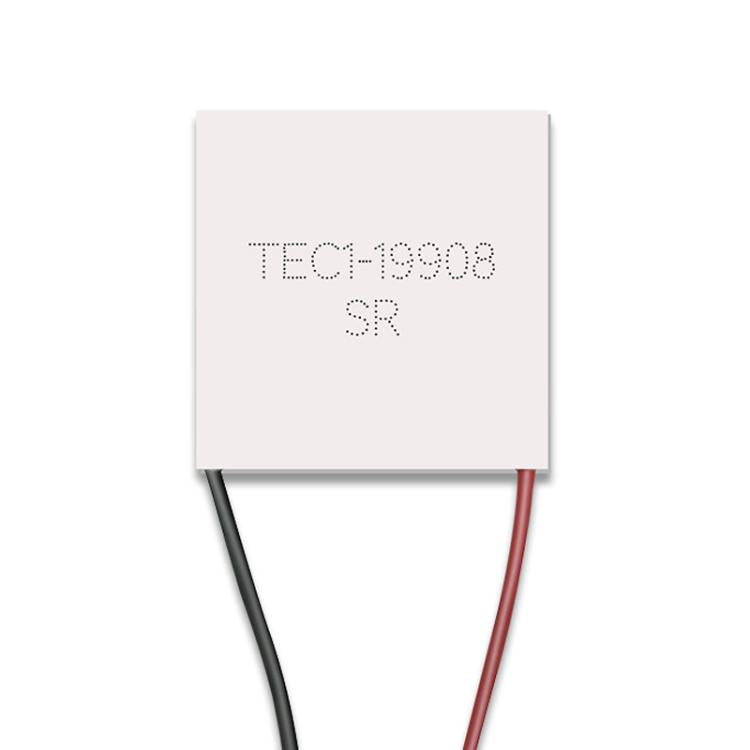

TEC1-19908 24V/8A High-power Semiconductor Refrigeration Plate

Description


1. Chip model: TEC1-19908SR
2. Temperature difference: 65 degrees Celsius
3. Voltage: 24V (MAX)
4. Assembly pressure: 85N/cm2
5. Current: 8A (MAX)
6. Working environment: Temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the refrigeration efficiency)
7. Packaging process: epoxy resin sealing

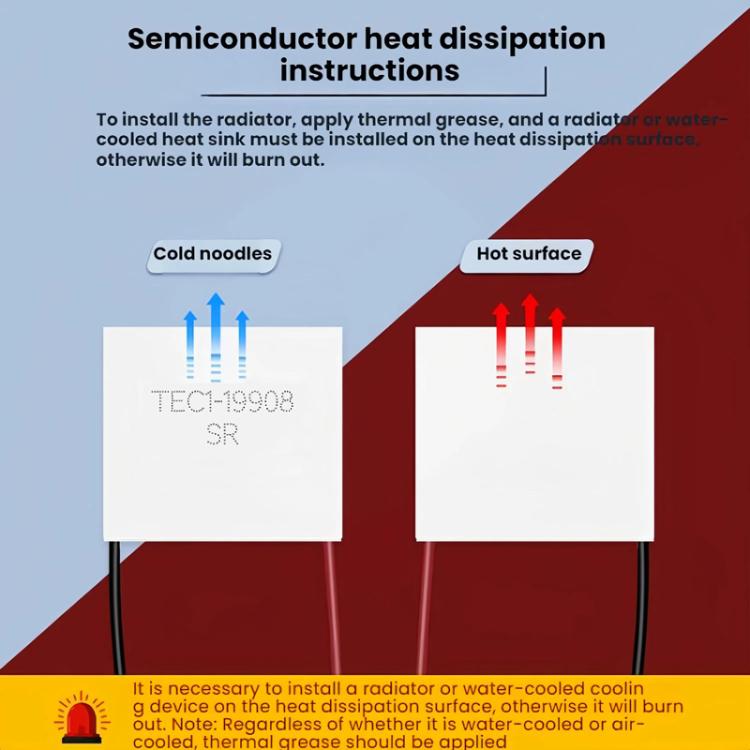

8. A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface, otherwise it will burn.

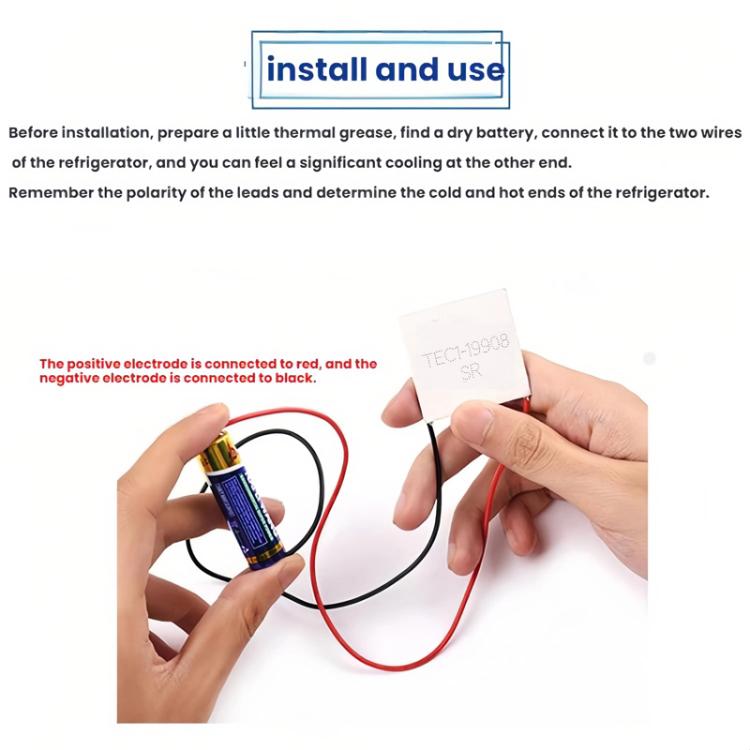

9. Device characteristics: red line positive electrode, black line negative electrode (literally the refrigeration surface, non-literally the heat dissipation surface)
10. When testing without heat dissipation, there will be a cooling effect. If the power is turned on, the power supply should be unplugged immediately within 1 second, otherwise the refrigeration plate will be easily burned.
11. Note: No matter whether it is water-cooled or air-cooled, thermal silicone grease must be applied
12. Wire specification: lead length 290mm
13. Dimensions: 40x40x3.4mm

Read more

Product form

SKU: TBD06061815

External Stock

Item in stock at manufacturer. Delivery can be expected in 7 - 10 Days.

Estimated delivery: Monday, 27 October – Thursday, 30 October.

R313

      Description


      1. Chip model: TEC1-19908SR
      2. Temperature difference: 65 degrees Celsius
      3. Voltage: 24V (MAX)
      4. Assembly pressure: 85N/cm2
      5. Current: 8A (MAX)
      6. Working environment: Temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the refrigeration efficiency)
      7. Packaging process: epoxy resin sealing
      8. A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface, otherwise it will burn.
      9. Device characteristics: red line positive electrode, black line negative electrode (literally the refrigeration surface, non-literally the heat dissipation surface)
      10. When testing without heat dissipation, there will be a cooling effect. If the power is turned on, the power supply should be unplugged immediately within 1 second, otherwise the refrigeration plate will be easily burned.
      11. Note: No matter whether it is water-cooled or air-cooled, thermal silicone grease must be applied
      12. Wire specification: lead length 290mm
      13. Dimensions: 40x40x3.4mm

      Read more
