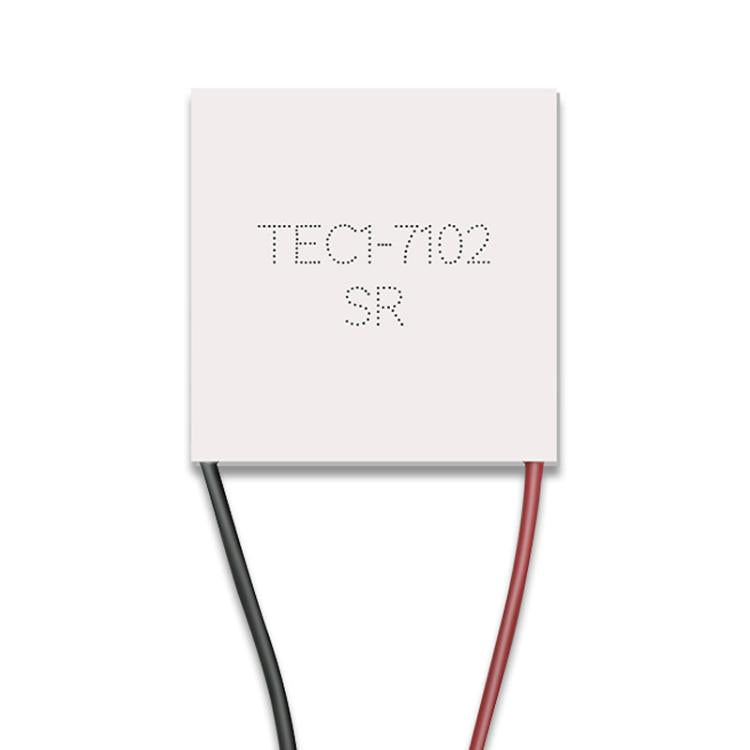

TEC1-7102 8.4V/2A Low-Power Semiconductor Refrigeration Plate

Description


1. Chip model: TEC1-7102SR
2. Temperature difference: 65 degrees Celsius
3. Voltage: 8.4V (MAX)
4. Internal resistance value: 2.9-3.5 ohms (ambient temperature 23 degrees Celsius, 1KHZAc test)
5. Assembly pressure: 85N/cm2
6. Working environment: Temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the refrigeration efficiency)
7. Current: 2A (MAX)
8. Packaging process: 704 silicone rubber seal around
9. Storage conditions ambient temperature -10~40 degrees Celsius

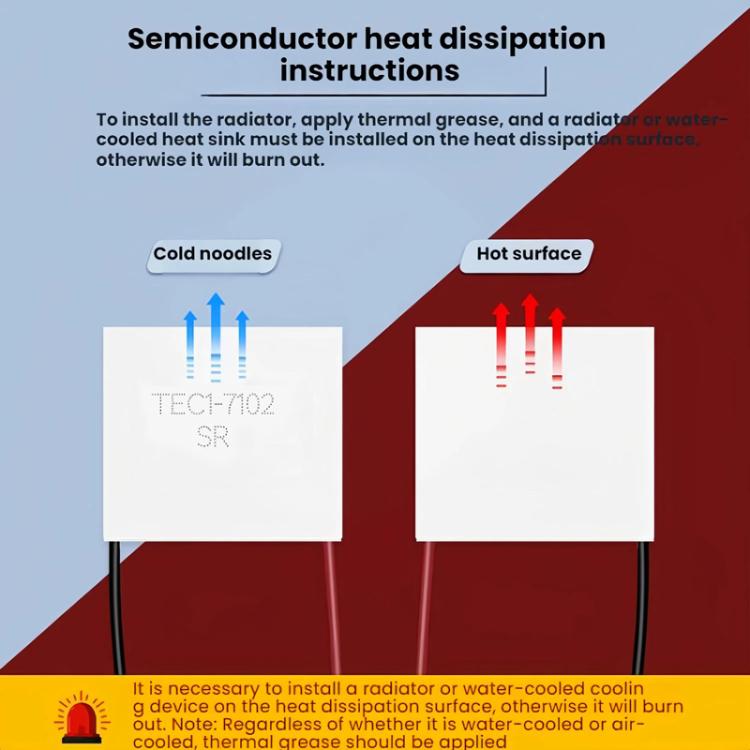

10. A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface, otherwise it will burn.
11. Device characteristics: red line positive electrode, black line negative electrode (literally the refrigeration surface, non-literally the heat dissipation surface)
12. When testing without heat dissipation, there will be a cooling effect. If the power is turned on, the power supply should be unplugged immediately within 1 second, otherwise the refrigeration plate will be easily burned.
13. Note: no matter whether it is water-cooled or air-cooled, thermal silicone grease must be applied
14. Wire specifications: lead length 150mm, RV standard wire single head 5mm tin plated
15. Dimensions: 30x30x4.2mm

Read more

Product form

SKU: TBD06061812

External Stock

Item in stock at manufacturer. Delivery can be expected in 7 - 10 Days.

Estimated delivery: Monday, 27 October – Thursday, 30 October.

R188

      Description


      1. Chip model: TEC1-7102SR
      2. Temperature difference: 65 degrees Celsius
      3. Voltage: 8.4V (MAX)
      4. Internal resistance value: 2.9-3.5 ohms (ambient temperature 23 degrees Celsius, 1KHZAc test)
      5. Assembly pressure: 85N/cm2
      6. Working environment: Temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the refrigeration efficiency)
      7. Current: 2A (MAX)
      8. Packaging process: 704 silicone rubber seal around
      9. Storage conditions ambient temperature -10~40 degrees Celsius
      10. A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface, otherwise it will burn.
      11. Device characteristics: red line positive electrode, black line negative electrode (literally the refrigeration surface, non-literally the heat dissipation surface)
      12. When testing without heat dissipation, there will be a cooling effect. If the power is turned on, the power supply should be unplugged immediately within 1 second, otherwise the refrigeration plate will be easily burned.
      13. Note: no matter whether it is water-cooled or air-cooled, thermal silicone grease must be applied
      14. Wire specifications: lead length 150mm, RV standard wire single head 5mm tin plated
      15. Dimensions: 30x30x4.2mm

      Read more
